BCH files saved with UTF-8 encoding fail to print

Description

BCH files (*.BCH) saved with UTF-8 encoding fail to print.

NOTE: In version 10.1.1.51, all resubmitted jobs from the Loftware Status Client program are sent in UTF-8 format.

To reproduce

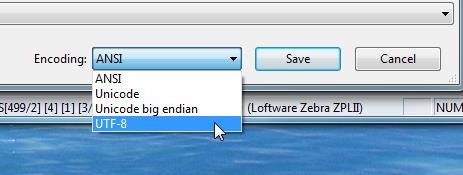

When creating sample BCH files from the Design32 application, or saving them from any application, you have the option of multiple encodings.  Not all of these encodings will process properly.  Specifically .BCH files are saved with UTF-8 encoding, which while common for .PAS and .XML files, does not work for .BCH files.



The error you will see is “Error Reading in Label A label is a design area on the computer screen where a label format is created or edited.”

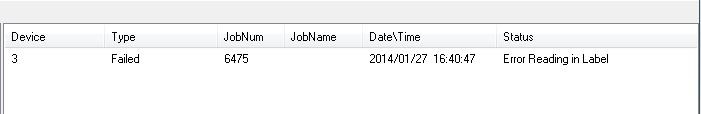

LPS logging shows that the job failed but does not show any reason for the failure

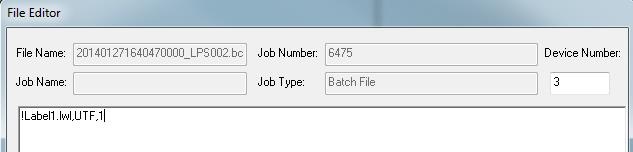

The file editor does not show any issues.

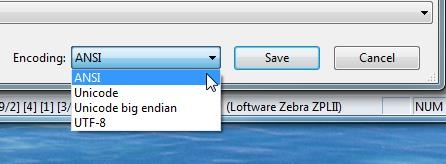

When the same file is saved with ANSI American National Standards Institute, a non-governmental organization responsible for the coordination of voluntary national (United States) standards. encoding, as shown below:

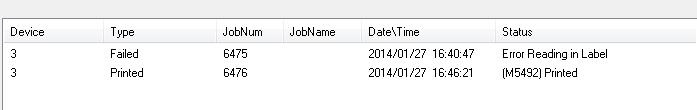

The file is prints successfully.





Solution

Always save .BCH files using ANSI encoding.
