How to Create a Vertically Printed Field on a Label Template

Description

When designing a label, how to create a field which will print in a vertical orientation so the value supplied is read from top to bottom rather than the typical left to right. For example, how to create a vertically printed field as shown in the following image:

F

I

E

L

D

How to Configure a Field for Vertical Printing

  1. Add variable field to label design.

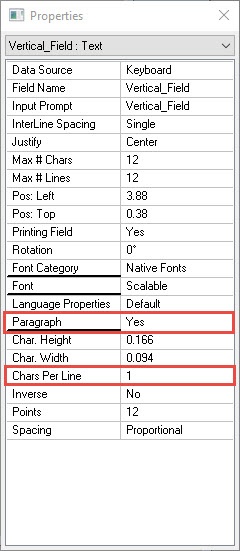

  2. In the field Properties, set Paragraph to Yes and set Chars Per Line to 1.

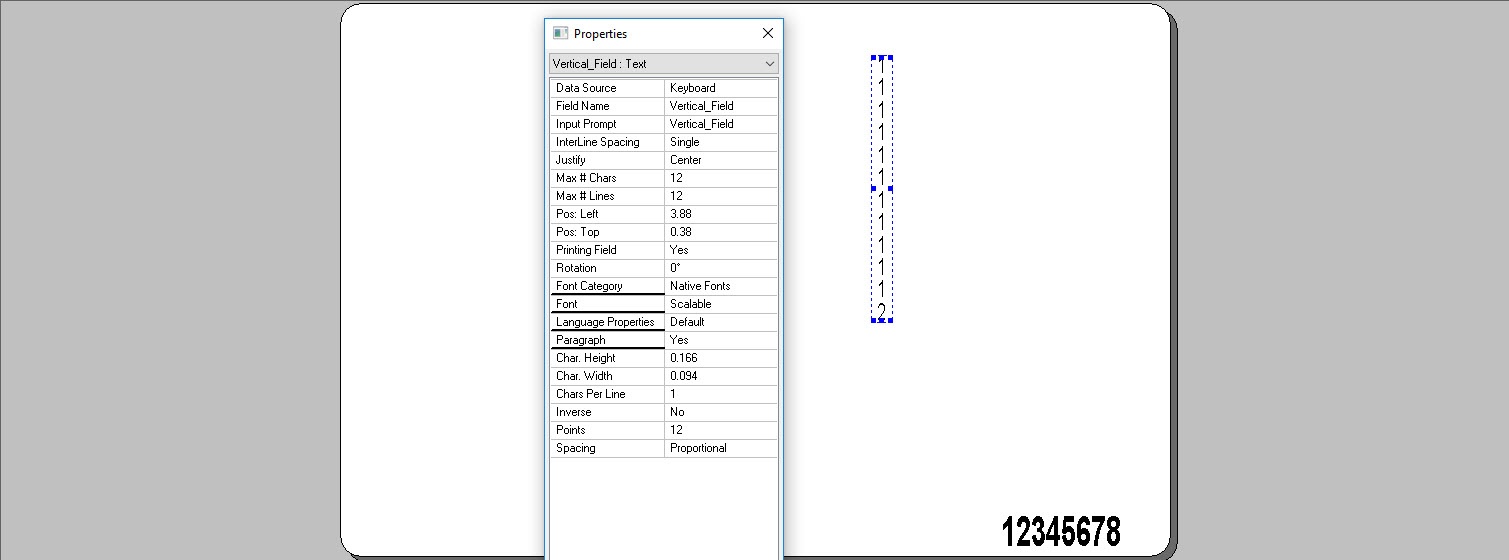

  3. The field should now display in vertical view on the label design template.


Article Number

2017016

Versions

9.x or higher.

Environment

All supported Loftware LabelClosed A label is a design area on the computer screen where a label format is created or edited. Manager or Loftware Print Server environments.
