Error M632 Unable to Open File

Description

When printing using the File Drop The action of making print requests by placing files in the LPS scan directory. LPS detects this request and responds by printing the label. See Scan Directory. printing method, the label does not print and the following error is displayed:

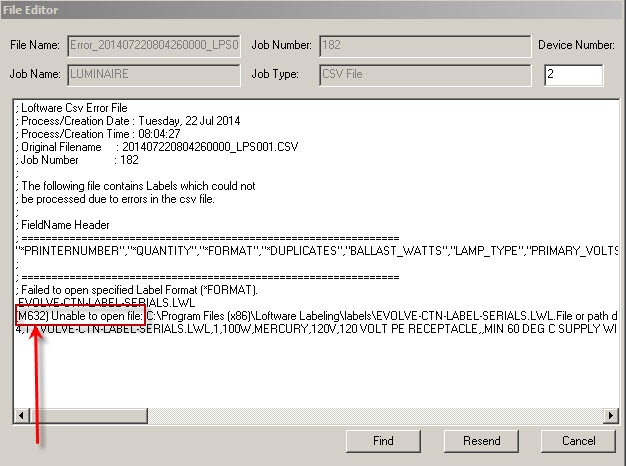

Note the location of error message below:



Explanation

This error occurs when trying to run a file drop and not having all the files referenced on the label in the correct directories.

Solution

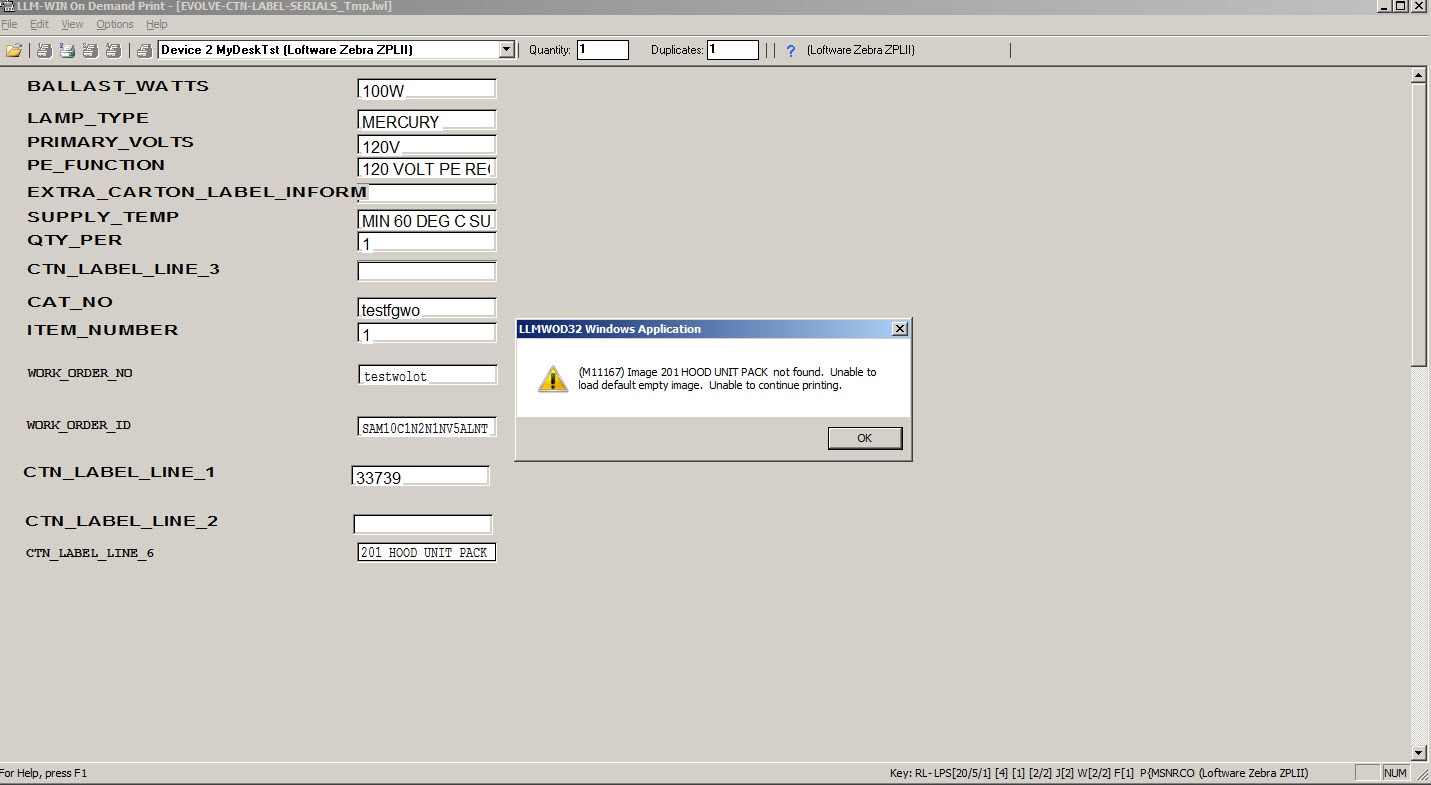

To resolve the error, save the files in the correct directories.  To verify the correct directories within the Design32 application, select "Options" and "File Locations".  This will indicate where Loftware Print Server will be looking for files such as Image files, Serial files, Label A label is a design area on the computer screen where a label format is created or edited. file, Templates, etc.  If you are unable to verify which file is causing the error to occur, open the On Demand Print within Design32 and populate each field in the form with the information from the drop file. Once you select the print button you will be prompted with an error message.  Within the error message you will see the specific field causing the error.
