Security

Security tab of the RFID Tag dialog allows you to configure the RFID tag security settings. These settings allow or deny access to RFID data writing or editing.

Security settings depend on the selected printer. There are three major configuration types.

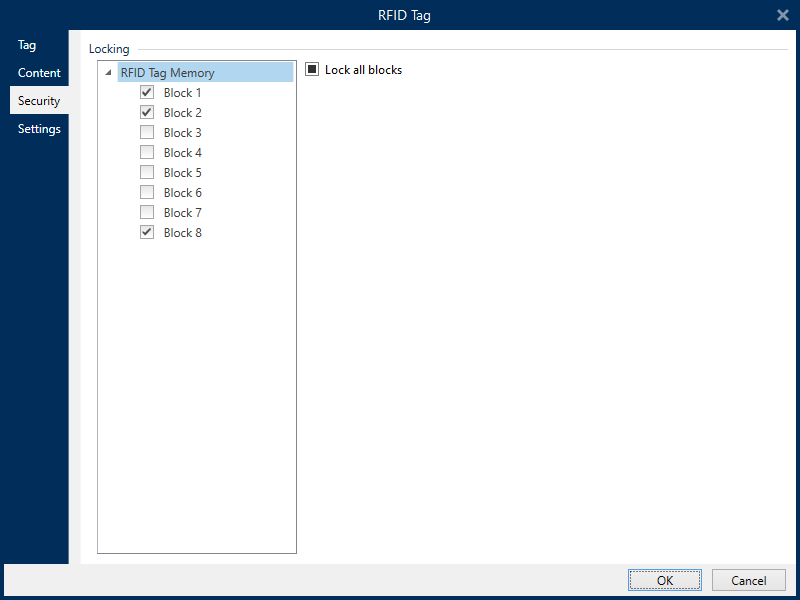

Single Memory Field with Multiple Blocks

Locking group includes an overview of the blocks that are included in the RFID tag memory. Each block can be locked individually.

To protect the block for editing and writing, enable the Block locked option.

Lock all blocks option allows you to lock all blocks in the memory field simultaneously or unlock them if they are already locked.

Multiple Memory Fields

Access Protection group sets a password that must be entered before editing or writing the RFID data.

Data type defines the method for entering the Password.

• ASCII string: Password should be entered as a string of ASCII characters.

• HEX encoded string: Password should be entered as a string of hexadecimal pairs.

• Numeric: Password should be entered as a string of digits.

Kill code defines the code that disables the RFID tag permanently and irreversibly.

Data type defines the method for entering the Kill code characters.

• ASCII string: Kill code should be entered as a string of ASCII characters.

• HEX encoded string: Kill code should be entered as a string of hexadecimal pairs.

• Numeric: Kill code should be entered as a string of digits.

Multiple Memory Fields with Block Locking

Additional settings from Multiple Memory Fields allow the user to set the locking for individual blocks within RFID tag memory fields.

Locking group includes an overview of the memory fields that are included in the RFID tag. Each memory field can be locked individually.

Select locking settings allows you to define how the blocks are locked.

• Preserve original setting: original locking setting cannot be retrieved, but the default option assumes that the tag setting should remain unchanged.

• Lock: block is locked and further changes are prevented.

• Unlock: block is unlocked and editable.

• Relock: RFID tag is unlocked for the changes to be applied. When done, the tag is relocked immediately.

• Permanent lock, unlock or relock: makes the above described settings permanent. These settings cannot be undone.

Blocks for locking: defines the individual blocks or range(s) of blocks to be locked.
